Detailed description

Máy khóa vít tự động loại máy tính để bàn tự động cho các sản phẩm điện đồ chơi, Máy vặn vít tự động, Máy siết vít tự động, Máy vặn
vít điện tự động

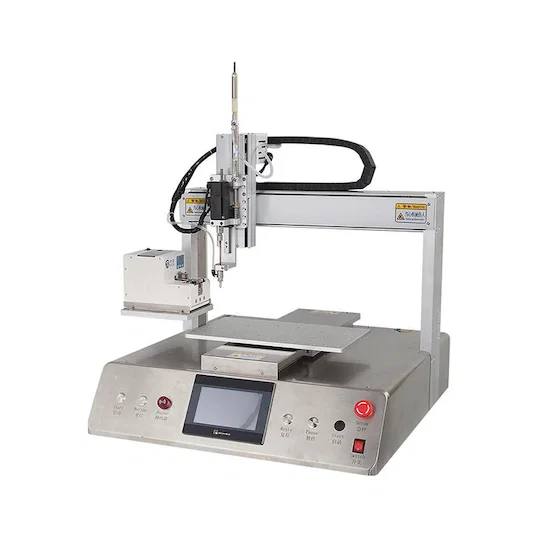

Automatic Lock Screw Machine (Vacuum Suction Type)

Scope of application:

Applicable to all kinds of toys, small household appliances, electronic products, instrumentation, lighting, electronics, plastic, alloy, communication equipment, audio and other locking screw technology

1. Machine specification:

1. Vacuum suction screw structure can realize the standard plane structure of product locking screw position and the locking function of meson screw.
2. Two-mode left-right alternating replacement of products to achieve a high-efficiency mode of work
3. Supporting Leakage Lock/Sliding Teeth/Floating Teeth Alarm Function
4. Supporting the regulation function of pre-placing, post-placing, and preplacing
5. Supporting automatic induction start-up operation function and servo batch speed and torsion self-regulation function
6. Supporting hand-driven adjusting function for adjusting and comparing lock screw points

2. Parameters:

MODEL	WPM-4220-2Z
Locking screw range	X200×Y1/420/Y2/420×Z135mm(X×Y×Y×Z)
Locking screw time	1~1.5sec/pc
Repetitive accuracy	+/-0.03mm
Program Record Model	15set, each set 99POINTS
Electric batch mode	Precision Servo motor Japan Brand
Feeding model	Vacuum Suction
Control system	SCM and Touch screen
Motor system	Precision close loop stepper motor
Driving model	Taiwan brand Precision linear guide
Input power supply	220V 50HZ/60HZ
Working air supply	0.4~0.6MPA
Editorial Model	Manual/Automatic
Working temperature	5~40℃
Working humidity	20-90%
Applicable screw	All kinds of screws
Suitable screw size	M1~M4(screw length max.16MM) or CUSTOM
Machine size	970×820×900mm(L×M×H)
Machine weight	100KG

3. Machine Photos:
